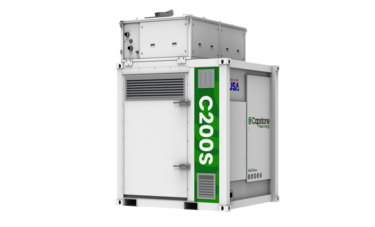

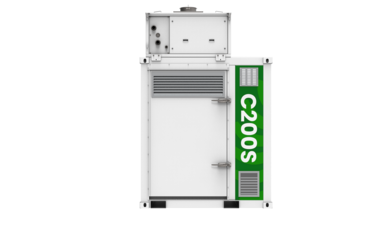

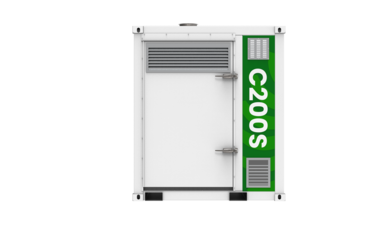

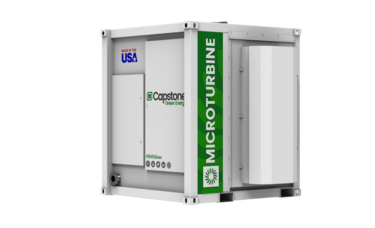

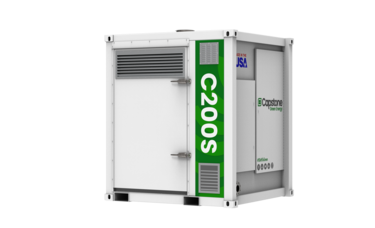

C200S
Expandable
Can be paralleled up to 30MW of power
200 kw Electrical
33%
Up to 90%
400-480 VAC
50/60 Hz, Grid Connect
3-Phase, 4-Wire Wye
3.0 m (117 in)
2.5 m (100 in)
3.03 m (119 in)
Grid Connect – 5,200 kg (11,400 lbs); Dual Mode – 5,850 kg (12,900 lbs)
10.9 MJ/kWh (10,300 BTU/kWh)
280 ºC (535ºF)
1.3 kg/s (2.9 lbm/s)
Pipeline Natural Gas, Biogas (Landfill, Digester), Raw Natural Gas (Sour, Associated Gas)
